XV Series

Power for Professionals.

The XV is designed for paging, music and alarm signals. Versatile, dynamic and extremely rugged according to IEC 268-3. For the highest requirements in safety and quality.

Sequential power on, alive contacts – the XV is the solution under all conditions. Without the need for additional equipment. For uninterrupted and troublefree operation.

Needless to say that the Bittner High-End toroidal output transformers in the XV series are some of the best available.

  • High Tech SMT Design
  • Protection Circuits: DC, LF, HF, Thermal, Short Circuit, Current Limiter, 3 ms Muting Delay
  • PHOENIX
  • High-End Toroidal Output 100V Transformers
  • LED Indicators for POWER, SIGNAL, CLIP, PROTECT and OVERHEAT
  • Temperature controlled, variable speed low noise fans
  • Volume Controls at the back
  • Stereo / Parallel Mode
  • Softstart
  • Sequential Remote Power On
  • Alive Contact
  • Ground Lift
  • 3 Years Warranty

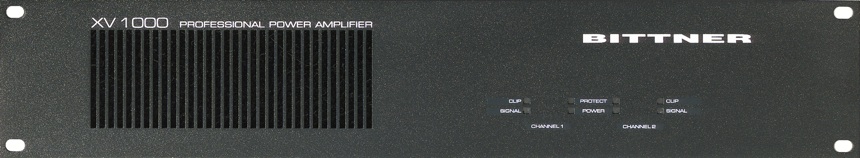

  • XV Series Front

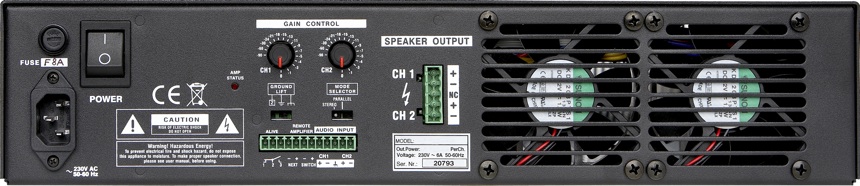

  • XV Series Back

Documents

Technical Data

XV
20040060010001600
Channels22222
ClassABABABABAB
Output Power per Chan. 20 Hz - 20 kHz 0.1% THDW100 V100200300500800
Frequency Response Full PowerdB20 Hz00000
20 kHz-0.3-0.3-0.3-0.3-0.3
THD 20 Hz - 20 kHz 10 dB below Full Power%<0.050.030.040.040.05
THD 1 kHz Full Power%<0.070.060.060.060.07
Signal-to-Noise Ratio 20 Hz - 20 kHzdB>101103103105107
Channel SeparationdB>7575757070
Input SensitivitydBu-10+2+3+6
Input ClippingdBu2222222222
Input Impedance2020202020
Voltage GaindB42.342.342.342.342.3
Cooling Fans (temperature controlled)front00000
back22223
Idle CurrentA230 V0.10.10.10.10.1
Power Consumption 1/8 Load (Speech)A100 V1.11.93.13.95.9
Power Consumption 1/3 Load (compressed Music)A100 V1.62.84.75.89.0
Power Consumption Full PowerA100 V2.54.57.49.314.1
Heat Dissipation (Idle)W1316181919
Heat Dissipation 1/8 Load (Speech)W100 V2053505756951040
Heat Dissipation 1/3 Load (compressed Music)W100 V2704607959001385
Heat Dissipation Full PowerW100 V34057599010251480
DSPno
SXL Dataportno
Remote Power Onyes
Alive Contactyes
Backup Power24 V DCno
HeightRU22222
Depthmm382382382382382
Weight (net)kg1517193338
Power RequirementsV210-240
Hz50-60
