4DXV Series
Exceeding Expectations.
Its revolutionary Class D concept provides a superior combination of efficiency and endurance. Without any loss, even during continuous operation.
The 100 V floating direct outputs lower a lot more than just the weight: Installation and rack prices will drop significantly. And to round this off, the cost for energy consumption will average at roughly one third of any ordinary amplifier.
In addition: In case of a loss of power, the amplifier will automatically switch to 24 V battery power – without any loss of output power!
Sequential power up and “Alive” relays included. No doubts – a real Bittner!
- Class D
- Discrete build of power amp modules
- 2 separate 2-channel amplifiers
- 100 volts direct output
- 24 volts backup power
- High power, high efficiency SMPS with PFC

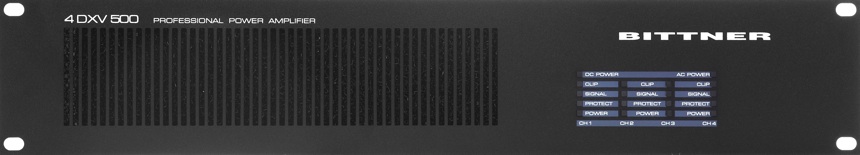

- LED Indicators for AC POWER, DC POWER, SIGNAL, CLIP, PROTECT
- Protection circuits: DC, LF, HF, Thermal, Short Circuit, Current Limiter
- Sequential remote power on/off
- 2 alive contacts
- High Tech SMT Design
- Temperature controlled, variable speed, low noise fans

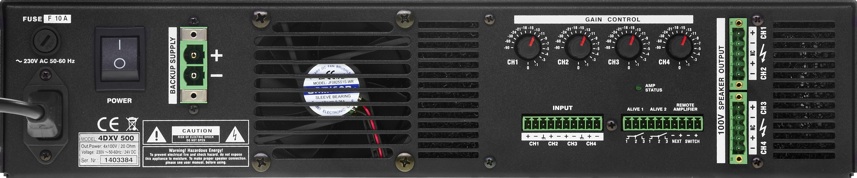

- Volume control at the back
- 3 years warranty
Technical Data
| 4DXV | ||||
| 250 | 500 | |||
| Channels | 4 | 4 | ||
| Class | D | D | ||
| Output Power per Chan. 20 Hz - 20 kHz 0.1% THD | W | 100 V | 250 | 500 |
| Frequency Response Full Power | dB | 20 Hz | 0 | 0 |
| 20 kHz | -0.3 | -0.3 | ||
| THD 20 Hz - 20 kHz 10 dB below Full Power | % | < | 0.02 | 0.02 |
| THD 1 kHz Full Power | % | < | 0.03 | 0.03 |
| Signal-to-Noise Ratio 20 Hz - 20 kHz | dB | > | 100 | 100 |
| Channel Separation | dB | > | 96 | 92 |
| Input Sensitivity | dBu | 0 | 0 | |
| Input Clipping | dBu | 21 | 21 | |
| Input Impedance | kΩ | 12 | 12 | |
| Voltage Gain | dB | 42.2 | 42.2 | |
| Cooling Fans (temperature controlled) | front | 3 | 3 | |
| back | 1 | 1 | ||
| Idle Current | A | 230 V | 0.5 | 0.5 |
| 24 V DC | 2.9 | 3.0 | ||
| Power Consumption 1/8 Load (Speech) | A | 100 V | 1.8 | 2.8 |
| 24 V DC | 11.8 | 18.6 | ||
| Power Consumption 1/3 Load (compressed Music) | A | 100 V | 3.3 | 6.0 |
| 24 V DC | 22.8 | 41.6 | ||
| Power Consumption Full Power | A | 100 V | 7.9 | 15.5 |
| 24 V DC | 49.7 | 78.6 | ||
| Heat Dissipation (Idle) | W | 73 | 76 | |
| Heat Dissipation 1/8 Load (Speech) | W | 100 V | 170 | 215 |
| Heat Dissipation 1/3 Load (compressed Music) | W | 100 V | 220 | 330 |
| Heat Dissipation Full Power | W | 100 V | 300 | 580 |
| DSP | no | |||
| SXL Dataport | no | |||
| Remote Power On | yes | |||
| Alive Contact | yes | |||
| Backup Power | 24 V DC | yes | ||
| Height | RU | 2 | 2 | |
| Depth | mm | 454 | 454 | |
| Weight (net) | kg | 14 | 14 | |
| Power Requirements | V | 210-240 | ||
| Hz | 50-60 | |||
