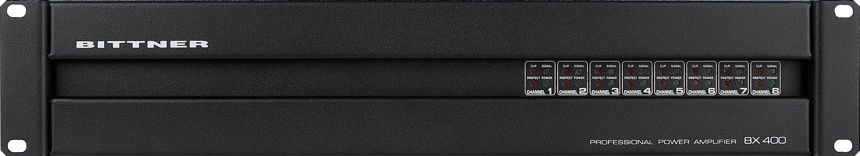

8X Series
Setting Standards.
Customer wishes and requirements are the only standard for Bittner. It is our pride to realise them in the most innovative way imaginable.
Confidence is good – two separate power supplies are better. And wear-free digital potentiometers, an integrated Noise Gate per channel, sequential remote power on, alive contacts for every channel pair, computer control – how much intelligent power fits into such a compact design?
8X – that’s multiple reliability. For the highest demands in sound and flexibility.
To handle a complete installation with only one dense power package – well, that’s what we call a standard.
- Up to 8x 400 W @ 4 Ohm in only 2 RU
- 4 separate stereo amplifiers

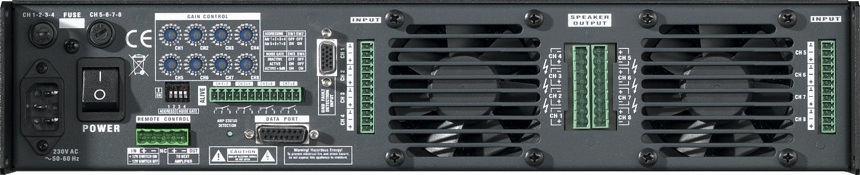

- Ideal for fixed installations: Controls from the back panel only
- High Tech SMT Design
- Protection Circuits: DC, LF, HF, Thermal, Short Circuit, Current Limiter, 3 ms Muting Delay
- All inputs and outputs pluggable with PHOENIX connectors
- 2 High-End toroidal transformers
- 2 seperate power supplies
- LED indicators for SIGNAL, CLIP, PROTECT, POWER
- Temperature controlled, variable speed low noise fans
- Softstart
- Sequential Remote Power On
- 4 Alive Contacts
- Digital wear-free Volume Controls (can be operated manually)
- SXL Dataport
- Noise Gate (switchable)
- 3 Years Warranty
8XT – The Ideal Pair!
Simply connect an 8X amplifier to an 8XT multi-channel output transformer and you’ll be ready to meet our European norms and standards.
Technical Data
| 8X | |||||
| 100 | 200 | 400 | |||
| Channels | 8 | 8 | 8 | ||
| Class | AB | AB | AB | ||
| Burst per Channel 1 kHz | W | 8 Ω | 100 | 180 | 270 |
| 4 Ω | 130 | 250 | 490 | ||
| Output Power per Chan. 20 Hz - 20 kHz 0.1% THD | W | 8 Ω | 80 | 120 | 190 |
| 4 Ω | 100 | 180 | 330 | ||
| Output Power per Chan. 1 kHz / 1% THD | W | 8 Ω | 90 | 130 | 200 |
| 4 Ω | 110 | 200 | 350 | ||
| Output Power bridged 20 Hz - 20 kHz / 0.1% THD | W | 16 Ω | 160 | 260 | 360 |
| 8 Ω | 200 | 320 | 460 | ||
| Frequency Response Full Power | dB | 20 Hz | 0 | 0 | 0 |
| 20 kHz | -0.3 | -0.3 | -0.3 | ||
| THD 20 Hz - 20 kHz 10 dB below Full Power | % | < | 0.02 | 0.03 | 0.03 |
| THD 1 kHz Full Power | % | < | 0.03 | 0.04 | 0.04 |
| Signal-to-Noise Ratio 20 Hz - 20 kHz | dB | > | 101 | 103 | 103 |
| Channel Separation | dB | > | 85 | 85 | 85 |
| Input Sensitivity | dBu | -1 | 0 | +2 | |
| Input Clipping | dBu | 22 | 22 | 22 | |
| Input Impedance | kΩ | 20 | 20 | 20 | |
| Voltage Gain | dB | 28.8 | 31.4 | 34.1 | |
| Damping Factor | 4 Ω | 400 | 400 | 400 | |
| Cooling Fans (temperature controlled) | front | 0 | 2 | 2 | |
| back | 2 | 2 | 2 | ||
| Idle Current | A | 230 V | 0.3 | 0.4 | 0.5 |
| Power Consumption 1/8 Load (Speech) | A | 8 Ω | 2.9 | 4.4 | 7.0 |
| 4 Ω | 4.2 | 6.4 | 11.0 | ||
| Power Consumption 1/3 Load (compressed Music) | A | 8 Ω | 4.4 | 6.5 | 10.2 |
| 4 Ω | 6.4 | 9.5 | 16.3 | ||
| Power Consumption Full Power | A | 8 Ω | 6.7 | 9.5 | 14.7 |
| 4 Ω | 10.0 | 13.9 | 21.1 | ||
| Heat Dissipation (Idle) | W | 50 | 58 | 74 | |
| Heat Dissipation 1/8 Load (Speech) | W | 8 Ω | 420 | 630 | 1060 |
| 4 Ω | 650 | 1010 | 1700 | ||
| Heat Dissipation 1/3 Load (compressed Music) | W | 8 Ω | 560 | 810 | 1300 |
| 4 Ω | 900 | 1350 | 2200 | ||
| Heat Dissipation Full Power | W | 8 Ω | 560 | 850 | 1390 |
| 4 Ω | 1070 | 1480 | 2320 | ||
| DSP | no | ||||
| SXL Dataport | I2C | ||||
| Remote Power On | yes | ||||
| Alive Contact | yes | ||||
| Backup Power | 24 V DC | no | |||
| Height | RU | 2 | 2 | 2 | |
| Depth | mm | 454 | 454 | 454 | |
| Weight (net) | kg | 18 | 20 | 22 | |
| Power Requirements | V | 210-240 | |||
| Hz | 50-60 | ||||
