4Xi / 4Xe Series
As you like it.
The new 4X – Groundbreaking technology for event and installation! Much more than just power!
4x superior sound and solid durability, combined with amazing and leading technology. The next challenge may come!
Audio networking via Dante™ (optional). Control via Ethernet (with SXL II) – worldwide diagnostics and maintenance via the Internet. Mission Possible!
Four in one: front or rear controls, analog or digital inputs (whatever the application requires). XLR or Phoenix input connectors, Speakon or Phoenix output connectors – the concept of the 4X is as flexible as its applications.
- Up to 4x 2000 W in only 2 RU

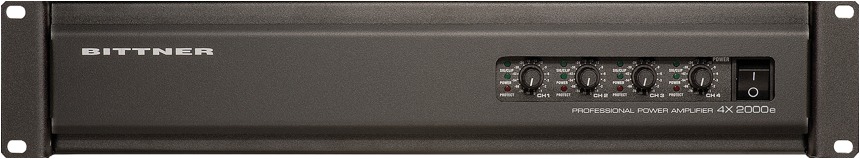

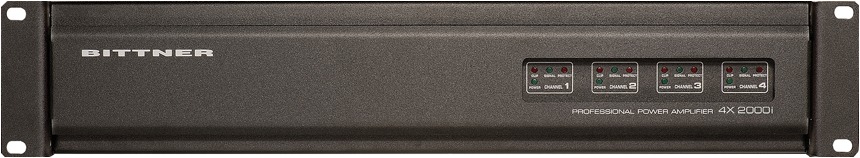

- For event (e version) or installation (i version)
- Impedance measurement
- Selectable Clip Limiter (hard/soft)
- 4-channel Dante™ Inputs (optional)
- SXL II Dataport (RS485)
- High Tech SMT Design
- Excellent sound and superior impulse response
- 2 separate stereo amplifiers
- Ready for 2 Ohm operation
- Protection Circuits: DC, LF, HF, Thermal, Short Circuit, Current Limiter, 3 ms Muting Delay

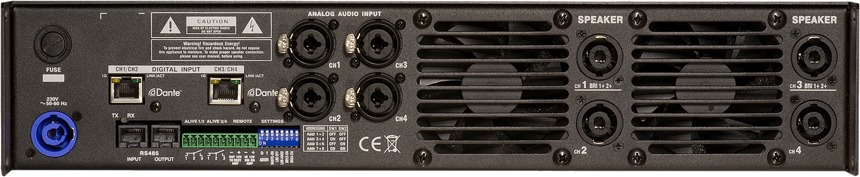

- XLR inputs and Speakon outputs (e version)

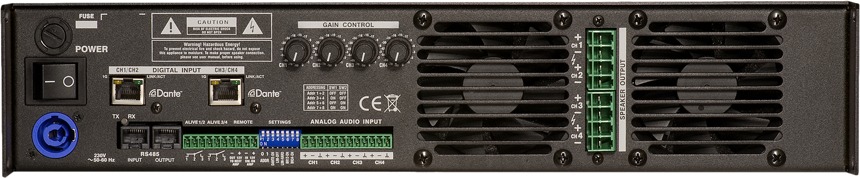

- Phoenix in- and outputs (i version)
- High-End switched power supply with PFC
- LED indicators for SIGNAL, CLIP, PROTECT, POWER
- Temperature controlled, variable speed low noise fans
- Digital wear-free Volume Controls (can be operated manually)
- Selectable Stereo/Bridged Mode
- Softstart
- Sequential Remote Power On
- 2 Alive Contacts
- 3 Years Warranty
Technical Data
| 4Xi / 4Xe | ||||
| 1200 | 2000 | |||
| Channels | 4 | 4 | ||
| Class | H | H | ||
| Burst per Channel 1 kHz | W | 8 Ω | 630 | 820 |
| 4 Ω | 1000 | 1300 | ||
| 2 Ω | 1400 | 2000 | ||
| Output Power per Chan. 20 Hz - 20 kHz 0.1% THD | W | 8 Ω | 540 | 700 |
| 4 Ω | 890 | 1160 | ||
| 2 Ω | 1150 | 1650 | ||
| Output Power per Chan. 1 kHz / 1% THD | W | 8 Ω | 600 | 770 |
| 4 Ω | 980 | 1280 | ||
| 2 Ω | 1260 | 1820 | ||
| Output Power bridged 20 Hz - 20 kHz 0.1% THD | W | 16 Ω | 1030 | 1350 |
| 8 Ω | 1710 | 2160 | ||
| 4 Ω | 2270 | 3140 | ||
| Frequency Response Full Power | dB | 20 Hz | 0 | 0 |
| 20 kHz | -0.5 | -0.5 | ||
| THD 20 Hz - 20 kHz 10 dB below Full Power | % | < | 0.02 | 0.02 |
| THD 1 kHz Full Power | % | < | 0.03 | 0.03 |
| Signal-to-Noise Ratio 20 Hz - 20 kHz | dB | > | 100 | 100 |
| Channel Separation | dB | > | 75 | 75 |
| Input Sensitivity | dBu | +4 | +4 | |
| Input Clipping | dBu | 20 | 20 | |
| Input Impedance | kΩ | 20 | 20 | |
| Voltage Gain | dB | 34 | 34 | |
| Damping Factor | 4 Ω | 700 | 700 | |
| Cooling Fans (temperature controlled) | front | 2 | 2 | |
| back | 2 | 2 | ||
| Idle Current | A | 0.7 | 0.7 | |
| Power Consumption 1/8 Load (Speech) | A | 8 Ω | 5.5 | 6.0 |
| 4 Ω | 8.5 | 9.0 | ||
| 2 Ω | 11.0 | 12.0 | ||
| Power Consumption 1/3 Load (compressed Music) | A | 8 Ω | 11.0 | 14.0 |
| 4 Ω | 17.5 | 23.0 | ||
| 2 Ω | 21.5 | 26.5 | ||
| Power Consumption Full Power | A | 8 Ω | 19.0 | 23.0 |
| 4 Ω | >30 | >30 | ||
| 2 Ω | >30 | >30 | ||
| Heat Dissipation (Idle) | W | 80 | 80 | |
| Heat Dissipation 1/8 Load (Speech) | W | 8 Ω | 460 | 500 |
| 4 Ω | 800 | 850 | ||
| 2 Ω | 1200 | 1300 | ||
| Heat Dissipation 1/3 Load (compressed Music) | W | 8 Ω | 950 | 1300 |
| 4 Ω | 1650 | 2300 | ||
| 2 Ω | 1900 | 2750 | ||
| Heat Dissipation Full Power | W | 8 Ω | 1000 | 1350 |
| 4 Ω | --- | --- | ||
| 2 Ω | --- | --- | ||
| DSP | no | |||
| SXL Dataport | RS485 | |||
| Remote Power On | yes | |||
| Alive Contact | yes | |||
| Height | RU | 2 | 2 | |
| Depth | mm | 454 | 454 | |
| Weight (net) | kg | 15 | 16 | |
| Power Requirements | V | 210-240 | ||
| Hz | 50-60 | |||
